PNE® Hybrid
Hybrid Steel-Micro Fiber for Concrete
Advanced Blended Fiber Reinforcement for UHPC and FRC
Since 2002, we have specialized in concrete crack resistance, waterproofing, and anti-corrosion technologies.
Hybrid Steel and Synthetic Fiber for Concrete | PIONEER®
Advanced Blended Fiber Reinforcement for UHPC and FRC
Elevate your concrete with hybrid steel and synthetic fiber reinforcement designed to deliver exceptional crack control, toughness, and durability in UHPC, FRC, and high-performance concrete applications.
What Is Hybrid Steel and Synthetic Fiber for Concrete?
PIONEER® PNE® Hybrid steel and synthetic fiber systems combine high-tensile steel fibers with micro synthetic fibers to create an advanced crack-bridging network within concrete. This hybrid fiber reinforcement effectively controls both plastic and drying shrinkage cracks while providing post-crack load-bearing capacity and toughness for demanding concrete projects.
Standards for Hybrid Fiber Reinforced Concrete
PIONEER® hybrid steel and synthetic fibers for concrete reinforcement comply with:
-
ASTM A820 – Standard Specification for Steel Fibers for Concrete Reinforcement
-
ASTM C1116 – Standard Specification for Fiber-Reinforced Concrete
These standards ensure consistent performance for UHPC and advanced concrete reinforcement projects.

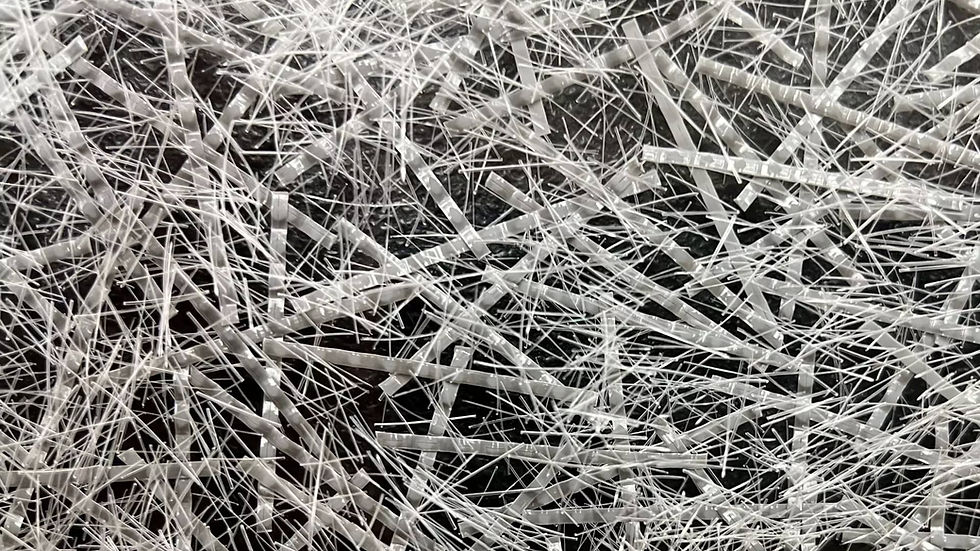

Physical Properties of Hybrid Fiber Reinforcement
Our hybrid fiber blend offers:
-
Material: High-tensile steel fibers + polypropylene micro fibers
-
Type: Blended hybrid fiber for concrete
-
Steel Fiber Length: 13 mm (customizable)
-
Steel Fiber Diameter: 0.2–0.4 mm
-
Synthetic Fiber Length: 6–12 mm
-
Tensile Strength: Steel: >2,500 MPa; Synthetic: >450 MPa
-
Modulus of Elasticity: Steel: 200 GPa; Synthetic: 3.5 GPa
-
Color: Mixed (gray and white)
Hybrid fiber-reinforced concrete during placement
Hybrid fiber mix ensures enhanced performance
Key Benefits of Using Hybrid Steel Fibers in Concrete
Using hybrid steel fiber reinforcement for UHPC and FRC provides:
-
Comprehensive Crack Control: Micro synthetic fibers reduce plastic shrinkage cracking, while steel fibers enhance post-crack toughness.
-
Superior Toughness: Increases flexural strength, energy absorption, and ductility.
-
Durability: Improves resistance to impact, abrasion, and fatigue in high-performance concrete.
-
Cost Efficiency: Allows partial or full replacement of rebar in select applications, reducing labor and material costs.
-
Consistent Reinforcement: Ensures uniform fiber dispersion without segregation during batching and placement.
Applications of Hybrid Steel and Synthetic Fiber for Concrete
PIONEER® hybrid fibers are ideal for:
-
UHPC panels, bridges, and architectural façades
-
High-speed rail infrastructure and thin overlays
-
Industrial floors and pavements with high abrasion demands
-
Shotcrete for tunnels and slope stabilization
-
Precast concrete requiring high ductility and crack resistance
-
Heavy-duty concrete surfaces for warehouses and ports
-
Concrete repair and durable overlays in structural rehabilitation
These hybrid fibers enhance high-performance concrete, UHPC, and FRC applications requiring a combination of crack control, toughness, and longevity.
Hong Kong-Zhuhai-Macao Bridge
Da Nang Pier, Vietnam
Hangzhou Olympic Center
How to Use Hybrid Fiber Reinforcement in Concrete
For effective use of hybrid steel and synthetic fiber for concrete:
-
Batching: Add fibers gradually during dry mixing to ensure even distribution.
-
Dosage: 10–30 kg/m³ depending on the structural and performance requirements.
-
Mixing: Extend mixing time to ensure full dispersion and prevent clumping.
-
Placement: Compatible with standard casting, vibration, pumping, and finishing methods for UHPC and fiber-reinforced concrete.
-
Finishing: Slight surface fiber exposure may occur but will not affect durability or performance.
Custom Hybrid Steel Fiber Solutions for Your Project
PIONEER® provides tailored solutions for your UHPC and advanced concrete needs:
Lengths & Ratios:
-
Customizable steel and synthetic fiber lengths and blend ratios for specific project requirements.
Packaging:
-
Water-soluble bags (5 kg, 10 kg) for clean, direct batching.
-
Cartons for organized site handling.
-
Bulk packaging for automated UHPC and precast production lines.
Technical Support:
-
Includes mix design guidance and on-site support for specialized UHPC and high-performance concrete projects.
Why Choose PIONEER® as Your Concrete Fiber Supplier
Partner with a direct manufacturer with over 22 years of expertise in synthetic fiber reinforcement for concrete and mortar.
22 Years of Expertise in Fiber Reinforcement
PIONEER® provides consistent, high-performance fibers that ensure long-term success in concrete slabs, precast elements, industrial floors, and critical infrastructure projects, making us a trusted supplier in the global market.
1,000+ Projects in 20+ Countries
Our fibers are applied in major projects, including the Hong Kong-Zhuhai-Macao Bridge, Bangladesh Subsea Tunnel, Walmart Superstores, and metro systems, demonstrating our proven capability in fiber-reinforced concrete and mortar applications.
Direct Manufacturer, One-Stop Service
We provide complete technical support, including dosage optimization, mix design consultation, and on-site application guidance to ensure your projects succeed with fiber-reinforced concrete and mortar.
PIONEER® Headquarters
26,500m² production base
Advanced fiber dispersibility
Exceptional tensile strength
Why Choose Us?
Proven Expertise & Greater Savings
22 years of focus
on fiber reinforcement solutions.
5,000 tons yearly
from advanced manufacturing.
20+ countries served
with global product distribution.
1,000 projects proven
in diverse applications worldwide.
