CrystalGuard™ 400
Crystalline Waterproofing Coating
Permanent Waterproofing & Self-Sealing Protection
Contact Us: Sales@pioneerfibre.com
Since 2002, we have specialized in concrete crack resistance, waterproofing, and anti-corrosion technologies.

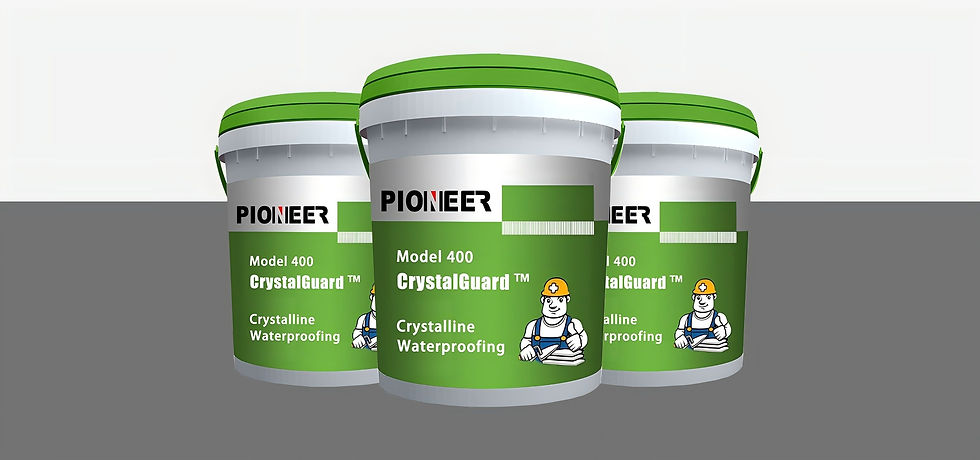

PIONEER® CrystalGuard™ 400
Crystalline Waterproofing Coating for Concrete Surfaces
What Is PIONEER® CrystalGuard™ 400 Crystalline Waterproofing Coating?
PIONEER® CrystalGuard™ 400 is a cement-based crystalline waterproofing coating specifically designed for concrete surfaces. When mixed with water, it forms a slurry that can be easily applied using various methods, including spraying, brushing, or scraping. This penetrating crystalline coating penetrates up to 30mm into the concrete, forming a dense crystalline structure that effectively seals the surface, providing long-lasting waterproofing and self-healing capabilities. As a crystalline penetrating coating, it is capable of repairing cracks up to 0.4mm, making it an ideal solution for critical applications.
Looking to reduce cost while improving concrete performance?
Get a cost comparison and dosage recommendation for your project.
Contact us at sales@pioneerfibre.com
Key Benefits of CrystalGuard™ 400 Crystalline Waterproofing Coating
-
Versatile Application: Can be applied using spraying, brushing, scraping, or dry sprinkling, adapting to various project needs.
-
Self-Healing Properties: Automatically repairs cracks up to 0.4mm, maintaining a waterproof barrier over time.
-
Deep Penetration: Penetrates approximately 30mm into the concrete, forming an integral crystalline waterproof layer.
-
Easy to Use: Simple mixing process; just add water to prepare the slurry for application.
-
Environmentally Friendly: Contributes to LEED certification and supports sustainable construction practices.
CrystalGuard™ Integral Crystalline Waterproofing Technology
CrystalGuard™ Integral Waterproofing is the result of PIONEER®’s 22 years of technological innovation, using crystalline waterproofing technology to achieve self-healing of concrete cracks and inherent waterproofing of concrete structures. This technology redefines the concept of building waterproofing and brings an intelligent dimension to concrete.
The related technologies of CrystalGuard™ have earned over 20 patents and received national recognition, including the Second Prize of the National Science and Technology Progress Award and the First Prize of the Ministry of Education Science and Technology Progress Award. As a leading crystalline coating supplier, CrystalGuard™ addresses the limitations of traditional flexible waterproof materials, such as aging, blistering, difficulty in construction, and challenging maintenance. Its concrete seal coating provides long-lasting waterproofing, matching the lifespan of the structure itself.
Need quick pricing or dosage guidance?
Contact us directly on WhatsApp for a faster response
Technical Advantages of CrystalGuard™ 400 Crystalline Waterproofing Coating
-
High Durability: The crystalline structure is resistant to water penetration, chemical exposure, and weathering.
-
Low Maintenance: Long-lasting protection minimizes the need for frequent repairs or reapplication.
-
Waterproof Integrity: Ensures a seamless barrier against water, improving the durability and lifespan of concrete structures.
-
Efficient Coverage: Requires minimal material while delivering maximum performance.
-
Versatile Use: Suitable for new construction and repair projects, covering a wide range of application methods.
Key Standards and Test Methods for CrystalGuard™ 400
-
ASTM C109: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars.
-
ASTM C1585: Standard Test Method for Measurement of Rate of Absorption of Water by Hydraulic-Cement Concretes.
-
ASTM C1586: Standard Guide for Quality Assurance of Mortars.
-
ASTM C1587: Standard Practice for Preparation of Field Removed Hardened Concrete for Compressive Strength Testin
Typical Applications for Crystalline Waterproofing Coating
-
Water Tanks: Provides superior sealing for tanks, ensuring no leakage and water containment.
-
Swimming Pools: Prevents water seepage, preserving structural integrity.
-
Basements and Underground Structures: Offers reliable underground waterproofing, protecting against water ingress.
-
Tunnels and Dams: Ensures waterproofing in demanding infrastructure applications like tunnels, bridges, and dams.
-
Concrete Slabs and Roofs: Protects large concrete surfaces from water damage and weathering.
Not sure how to choose the right fiber or dosage?
Our team can recommend a solution based on your project requirements.
Email us：sales@pioneerfibre.com
PIONEER® CrystalGuard™ 400 Dosage and Mixing Instructions
-
Mix Ratio: CrystalGuard™ 400 is applied at 2.8-3.7lbs./yd². Mix with water on-site at a water-to-material ratio of 0.3:1.
-
Application: Richlam400 can be applied by brushing, spraying, or scraping. For brushing, apply multiple layers. For spraying, achieve the desired thickness in one go. For high-quality surface requirements, apply by scraping and perform surface smoothing.
-
Curing: After the CrystalGuard™ 500 coating sets, maintain moisture by spraying a fine water mist. Do not use water pouring, spraying, or ponding methods for curing. The curing time should be at least 72 hours.
Integral Waterproofing Admixture
-
CrystalGuard™ 300 - Concrete Penetrating Waterproofing Sealer
-
CrystalGuard™ 400 - Crystalline Waterproofing Coating
-
CrystalGuard™ 400D - Dry Shake Waterproofing Powder
Need pricing or delivery details for your project?
Contact us directly on WhatsApp for faster support
Looking for a Quote or More Information about Our Products?
Share your application and receive the best fiber recommendation.
Select your application to get a faster recommendation
Need pricing or technical details for your project?
Send us your requirements and get a reply within 24 hours.
Reach out to us：sales@pioneerfibre.com
Prefer faster communication?
Chat with us directly on WhatsApp for instant support
Privacy Assurance: We respect your privacy and will never share your information.
Why Choose Us?
Proven Expertise & Greater Savings
22 years of focus
on concrete protection solutions.
20+ patents & awards
In concrete durability technology
20+ countries served
with global product distribution.
1,000 projects proven
in diverse applications worldwide.
FAQ
CrystalGuard™ 400 is a cement-based crystalline waterproofing coating designed to protect concrete structures by forming insoluble crystals within the concrete’s capillary pores, permanently blocking water penetration.
Yes. CrystalGuard™ 400 can be applied on both the positive side (water-facing side) and the negative side (opposite water pressure), making it suitable for basements, tunnels, and underground structures.
Yes. Because the crystalline reaction occurs inside the concrete matrix, CrystalGuard™ 400 becomes an integral part of the concrete and offers long-term, permanent waterproofing rather than forming a surface membrane.
