HGM® Basalt
Basalt Fiber for Asphalt Reinforcement
High-Performance Mineral Fiber for Asphalt
Since 2002, we have specialized in concrete crack resistance, waterproofing, and anti-corrosion technologies.
Basalt Fiber Reinforcement for Asphalt Pavements | PIONEER®
High-Performance Fiber Solutions for Fiber-Reinforced Asphalt Concrete
What Are Basalt Fibers for Fiber-Reinforced Asphalt Pavements?
PIONEER® HGM® Basalt is a high-performance chopped basalt fiber engineered specifically for asphalt pavements and overlays. Produced from 100% natural basalt rock, these fibers significantly enhance the structural integrity of fiber-reinforced asphalt concrete (FRAC).
By forming a three-dimensional reinforcement network inside hot mix or warm mix asphalt, HGM® Basalt improves resistance to cracking, rutting, fatigue, and deformation under heavy traffic loads and thermal stress. As a mineral fiber with excellent heat, chemical, and UV stability, it provides long-term durability in demanding pavement environments.
Looking to reduce cost while improving concrete performance?
Get a cost comparison and dosage recommendation for your project.
Contact us at sales@pioneerfibre.com
Key Benefits of Using Basalt Fiber in Asphalt Pavements
Leverage the core advantages of PIONEER® basalt reinforcement in high-performance asphalt applications:
-
Superior Durability: Significantly reduces cracking, rutting, and fatigue for longer pavement life.
-
High Thermal Resistance: Maintains performance during hot mix production and high-temperature service conditions.
-
Eco-Friendly Mineral Fiber: Sourced from natural basalt, supporting sustainable construction practices.
-
Improved Flexibility & Load Capacity: Helps pavements withstand thermal expansion and heavy traffic.
-
Chemical & UV Resistance: Ensures long-term reinforcement in harsh environmental conditions.
Technical Specifications of Basalt Fiber for Asphalt Reinforcement
Explore the physical and mechanical properties of HGM® Basalt:
-
Material: 100% basalt fiber
-
Fiber Type: Chopped mineral fiber
-
Diameter: 0.02 mm
-
Nominal Length: 6 mm, 12 mm
-
Tensile Strength: 3000 MPa
-
Modulus of Elasticity: 86–90 GPa
-
Melt Point: 600°C
-
Alkali, Acid, and Salt Resistance: High
-
UV Resistance: Excellent
Need quick pricing or dosage guidance?
Contact us directly on WhatsApp for a faster response
Applicable Standards for Fiber-Reinforced Asphalt Concrete
HGM® Basalt complies with leading international asphalt fiber standards:
-
ASTM D7552 — Fiber-Reinforced Asphalt Concrete
-
AASHTO M325 — Fiber Additives for Asphalt Mixtures
How Basalt Fibers Enhance Asphalt Pavements
PIONEER® HGM® Basalt disperses uniformly within asphalt mixtures, forming a multidirectional reinforcement matrix that:
-
Minimizes cracking, rutting, and fatigue
-
Enhances mix stability and cohesion
-
Increases deformation resistance
-
Provides long-term durability in heavy-traffic zones
-
Maintains performance under high heat and severe climate conditions
Asphalt mix reinforced with Basalt fibers
Crack control with Basalt fiber-modified asphalt
Where to Use Basalt Fiber for Asphalt Pavement Reinforcement?
Ideal applications of HGM® Basalt include:
-

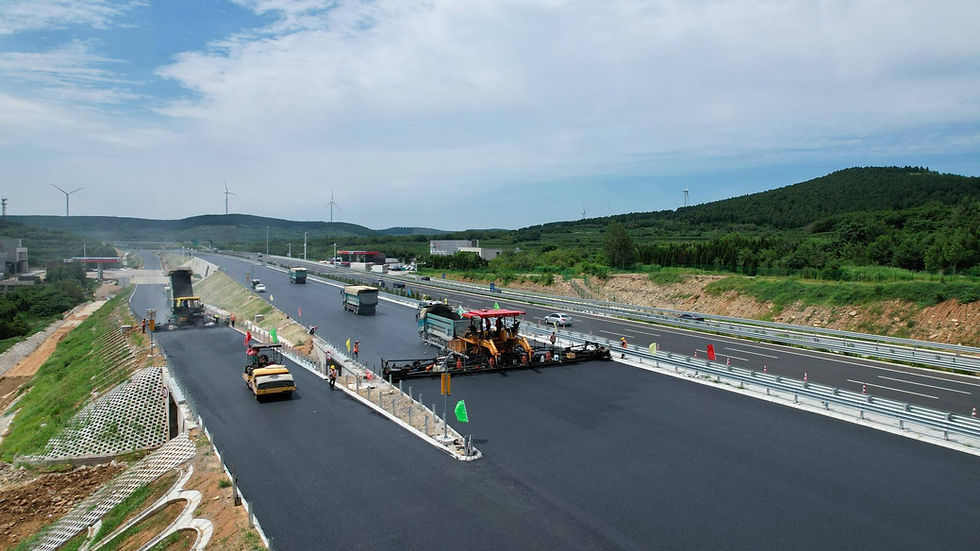

Roads and Highways: High-traffic routes needing enhanced durability
-
Pavement Overlays & Rehabilitation: Extending service life of aging surfaces
-
Heavy-Duty Pavements: Airports, industrial parks, bus lanes
-
Extreme Climate Zones: Hot regions, freeze-thaw areas, coastal environments
Hong Kong-Zhuhai-Macao Bridge
Da Nang Pier, Vietnam
Hangzhou Olympic Center
How to Use Basalt Fiber in Asphalt Mixes
PIONEER® basalt fibers integrate seamlessly into hot mix and warm mix asphalt.
Usage Guidelines:
-
Dosage: 1–3 kg per ton of asphalt mix
-
Mixing: Pre-blend with aggregates before adding bitumen
-
Construction: Compatible with standard paving equipment
-
Design: No mix design modification required
Not sure how to choose the right fiber or dosage?
Our team can recommend a solution based on your project requirements.
Email us：sales@pioneerfibre.com
Custom Fiber Solutions for Asphalt Projects
PIONEER® provides flexible customization options for asphalt reinforcement:
Lengths:
-
Custom fiber lengths available upon request
Packaging Options:
-
Bulk Ton Bags: For large asphalt plants
-
Low-Melt PE Bags: Clean, efficient dosing during mixing
Learn more about Micro Synthetic Fibers
-
HGM® Aramid - Aramid Fiber for Asphalt Mixtures
-
HGM® PET - Cost-Effective Fiber Additive for Asphalt
-
HGM® PAN - Heat-Resistant Polyacrylonitrile Fiber for Asphalt
-
HGM® Basalt - Mineral Fiber for Asphalt Mixtures
-
HGM® F-Lignin - High-Dispersion Lignin Fiber
-
HGM® G-Lignin - Granular Lignin Fiber for Asphalt
Need pricing or delivery details for your project?
Contact us directly on WhatsApp for faster support
Looking for Better Macro Synthetic Fiber Performance?
Standard PP macro synthetic fiber is widely used in fiber reinforced concrete, but its performance is often limited by material properties and manufacturing methods.
With lower tensile strength and a relatively smooth surface, conventional macro fibers provide limited anchorage and weak crack-bridging ability after cracking.
In real projects, this often results in insufficient post-crack strength, uneven performance, difficult finishing, and higher dosage just to meet basic requirements.
How Rimix™ 3D Improves Macro Fiber Performance
Rimix™ 3D is a high-performance upgrade to conventional macro fiber, engineered with advanced PP–PE composite materials.
It delivers higher tensile strength and modulus, allowing better load transfer across cracks and more stable post-crack performance.
Its optimized fiber geometry enhances bonding and pull-out resistance, while ensuring excellent dispersion without balling—making mixing and finishing easier on site.
Compared to standard macro fiber, Rimix™ 3D achieves stronger reinforcement with lower dosage, improving both performance and cost efficiency.
Need a better macro fiber solution for your project?
Get a cost comparison and dosage recommendation for your project.
Contact us at：sales@pioneerfibre.com
Upgrade Fiber Performance — Not Just Dosage
Simply adding more fiber does not always solve performance issues. The key is upgrading the material quality and structural performance of the fiber itself.
Rimix™ 3D provides higher efficiency per kilogram, helping achieve better crack control, improved workability, and more consistent concrete performance across different applications.
Rimix™ 3D vs Standard Macro Fiber
Key Factor
PP Macro Fiber
Rimix™ 3D Macro Fiber
Strength
400 – 500 MPa
550 – 620 MPa
Crack Performance
Limited after cracking
Strong and stable
Dosage Efficiency
Higher dosage needed
Lower dosage, higher efficiency
Not sure which macro fiber is right for your project?
Get fast guidance on dosage, cost, and performance before you decide.
Reach out to us：sales@pioneerfibre.com
Looking for a Quote or More Information about Our Products?
Share your application and receive the best fiber recommendation.
Select your application to get a faster recommendation
Need pricing or technical details for your project?
Send us your requirements and get a reply within 24 hours.
Reach out to us：sales@pioneerfibre.com
Prefer faster communication?
Chat with us directly on WhatsApp for instant support
Privacy Assurance: We respect your privacy and will never share your information.
Why Choose Us?
Proven Expertise & Greater Savings
22 years of focus
on fiber reinforcement solutions.
5,000 tons yearly
from advanced manufacturing.
20+ countries served
with global product distribution.
1,000 projects proven
in diverse applications worldwide.
FAQ
Basalt fiber increases stability, crack resistance, rutting control, and fatigue life in fiber-reinforced asphalt concrete.
Typical dosages range from 1–3 kg per ton of asphalt mix, depending on project requirements.
Yes, it works with conventional hot mix and warm mix production without modifying mix designs.
Yes. Its 600°C melt point and excellent thermal stability make it ideal for high-temperature environments.
Yes. It is a natural mineral fiber derived from basalt rock and supports sustainable construction.
