HPM® PAN
hpm-polyacrylonitrile-fibers-for-concrete-crack-resistance.

HPM PAN

Polyacrylonitrile Fibers

Enhance toughness and durability

Since 2002, we have specialized in concrete crack resistance, waterproofing, and anti-corrosion technologies.

PAN Fiber for Concrete

Polyacrylonitrile Micro Synthetic Fiber for Concrete and Cementitious Systems

HPM PAN is a polyacrylonitrile (PAN) monofilament micro synthetic fiber for concrete applications where fine-fiber distribution, material properties and crack-control requirements are important selection criteria.

It can be evaluated for high-performance concrete, precast elements, floors, shotcrete, mortar and other cementitious systems according to product dosage, fiber dimensions and project requirements.

What Is HPM PAN Fiber?

HPM PAN is a polyacrylonitrile micro synthetic fiber designed for concrete and cementitious materials. The product uses fine monofilament fibers that are distributed throughout the mix to provide micro-scale reinforcement within the cementitious matrix.​

HPM PAN is a polyacrylonitrile micro synthetic fiber designed for concrete and cementitious materials. The product uses fine monofilament fibers that are distributed throughout the mix to provide micro-scale reinforcement within the cementitious matrix.​

HPM PAN can be evaluated for concrete, mortar, repair materials, precast elements, floors and selected high-performance concrete applications.

Final product selection should follow the current HPM PAN Technical Data Sheet and project-specific performance requirements.

Manufacturer Supply

Quality Guaranteed

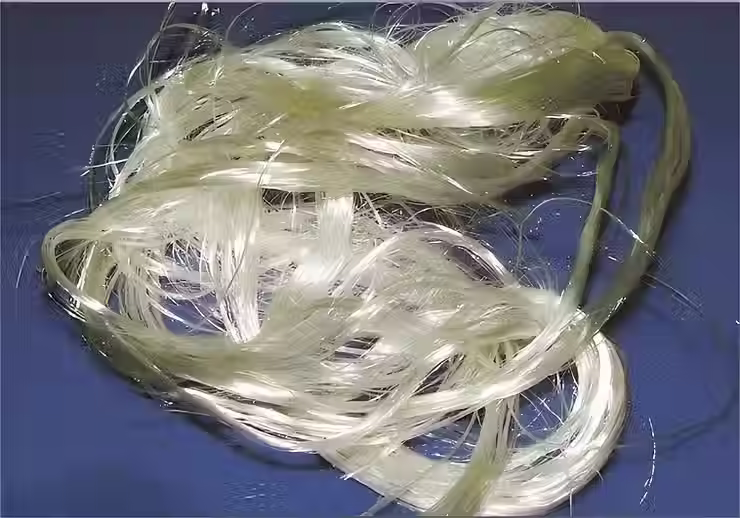

close-up-of-pan-fibers-for-concrete-reinforcement.
HPM PAN Technical Specifications
  • Material: Polyacrylonitrile (PAN)

  • Type: Monofilament Micro Synthetic Fiber

  • Specific Gravity: 1.14 g/cm³

  • Diameter: 0.009–0.013 mm

  • Lengths: 6 / 12 / 18 mm

  • Tensile Strength: 500–900 MPa

  • Modulus of Elasticity: 7–10 GPa

  • Color: Light Yellow / White

  • Chemical Resistance: Refer to Current TDS

Verify current product values, tolerances, available grades and test methods against the latest HPM® PAN Technical Data Sheet.

How HPM PAN Fiber Works in Concrete

HPM PAN uses fine monofilament fibers distributed throughout the cementitious matrix. The high fiber count created by the small fiber diameter allows microfibers to intersect developing cracks at multiple locations when adequate dispersion is achieved.

Micro-Scale Fiber Distribution

The fine PAN fibers are intended to provide distributed micro-reinforcement within the concrete or mortar matrix. Fiber distribution depends on dosage, fiber length, batching sequence, concrete workability and mixing conditions.

Crack-Control Role

Fibers crossing developing cracks can help limit crack opening at the micro scale. The actual crack-control performance depends on the concrete mix, fiber dosage, curing conditions and the applicable test method.

Product-Specific Performance

Any quantified improvement in shrinkage cracking, toughness, durability or other concrete properties should be confirmed using HPM PAN product-specific test data.

water-conservancy-project-durability-enhanced-with-polyacrylonitrile-fibers.

Enhancing the durability of water conservancy projects

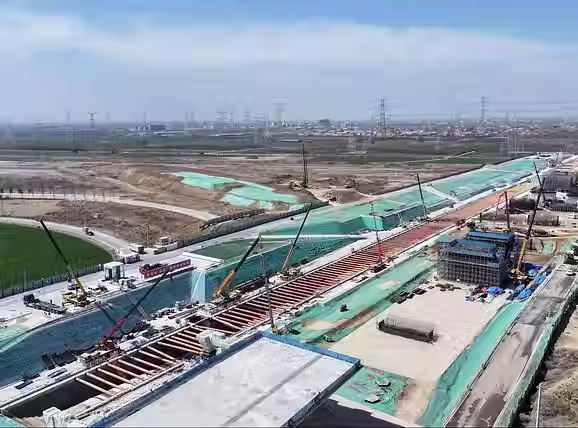

construction-site-with-crack-resistant-concrete-using-polyacrylonitrile-fibers.

Improving crack resistance, interfacial bonding

Key Features of HPM PAN

Fine Monofilament Fiber

Uses a fine polyacrylonitrile monofilament format for distributed micro-scale reinforcement in concrete and mortar.

Multiple Fiber Lengths

Available fiber lengths can be matched to different cementitious applications according to the current product specification.

Micro-Crack Bridging

Fine fibers can intersect developing cracks within the cementitious matrix when adequately dispersed.

High Fiber Count

The small fiber diameter provides a high number of individual fibers per unit mass compared with larger-diameter reinforcement fibers.

Product-Specific Dosage

Dosage should be selected according to the application, fiber length, concrete or mortar mix and required performance.

Broad Cementitious Application Range

HPM PAN can be evaluated for concrete, mortar, precast, floors, overlays, shotcrete and selected high-performance cementitious systems.

Recommended Applications

High-Performance Concrete

HPM PAN can be evaluated for high-performance concrete where fine-fiber reinforcement, matrix compatibility and project-specific crack-control requirements are important selection criteria.

Precast Concrete

PAN fiber may be evaluated in precast elements according to fiber length, concrete mix, production process, surface-finish requirements and required performance.

Industrial Floors and Slabs

HPM PAN can be evaluated for slabs, floors and pavement-related applications where micro-scale crack-control objectives are part of the concrete design.

Mortar, Repair and Overlays

Shorter PAN fiber grades may be evaluated for mortar, repair materials and thin overlays where fiber length, dispersion and finish are compatible with the matrix.

Shotcrete and Underground Works

HPM PAN may be considered for selected shotcrete applications where fiber distribution, pumping or placement requirements and project performance criteria have been confirmed.

Water-Retaining and Infrastructure Concrete

The product may be evaluated in tanks, basements, tunnels and other concrete structures where project-specific crack-control or durability requirements justify microfiber reinforcement.

Dosage and Mixing Guidelines

HPM PAN dosage should be selected according to fiber length, concrete or mortar application, required performance, mix design and current product technical data.

Mixing procedures should provide sufficient time and distribution to incorporate the selected PAN fiber grade consistently throughout the cementitious matrix.

Item

Guidance

Published Dosage Range

0.6–1.8 kg/m³

Typical Reference Dosage

1.0 kg/m³

Shorter Lengths

Mortar, repair and overlays

Longer Lengths

Standard concrete applications

Addition

Follow current batching instructions

Final Dosage

Based on mix and required performance

Confirm dosage, length selection and mixing instructions against the current HPM® PAN Technical Data Sheet.

HPM PAN vs Polypropylene Microfiber

HPM PAN

HPM PAN

Polypropylene Microfiber

Material

Polyacrylonitrile

Polypropylene

Fiber Type

Micro Synthetic Fiber

Micro Synthetic Fiber

Selection Basis

PAN-specific dimensions, properties and dosage

PP-specific dimensions, properties and dosage

Technical Comparison

Review HPM PAN TDS

Review PP product TDS

PAN and polypropylene are different polymer fiber materials with different physical properties, available dimensions and product formulations. Select between them according to the concrete application, required performance, dosage and product-specific test data.

Reinforcement Design Considerations

HPM PAN is a micro synthetic fiber product and should not be treated as a universal replacement for structural reinforcement.

Where a project considers reduction or substitution of welded wire reinforcement or other conventional reinforcement, the decision should be based on structural design, applicable test data and project-specific approval rather than PAN fiber dosage alone.

Applicable Standards and Technical References

Applicable standards depend on the HPM PAN product grade, intended application and destination market. Review the latest technical data and conformity documents before specifying the product.

Product documentation may reference standards for synthetic fibers and fiber-reinforced concrete. Confirm the applicable classification, test method and current edition in the controlled product documentation.

Packaging and Supply

HPM PAN is available for project, precast, ready-mix and distributor supply. Packaging and available fiber lengths may vary according to product grade, project requirements, destination and order volume.

pioneerfibre-engineer-on-site-technical-support.

Have Any Questions?
Get in Touch with Us Now!

Contact Our Sales & Technical Team

For product inquiries, quotations, technical support, or distribution opportunities,

contact our team directly.

Email

Sales & Business: Sales@pioneerfibre.com
Technical Support: Support@pioneerfibre.com

WhatsApp

Sales Manager: +1 (406) 717-9829
Technical Director: +1 (929) 569-9992

Get a Quick Quote or Product Recommendation

​Tell us about your application, and our team will help you find the right product and solution.Select your application below for a faster response.

Privacy Assurance: We respect your privacy and will never share your information.

Why Choose Us?

Proven Expertise & Greater Savings

24 years of focus

on fiber reinforcement solutions.

5,000 tons yearly

from advanced manufacturing.

20+ countries served

with global product distribution.

1,000 projects proven

 in diverse applications worldwide.

Why Choose PIONEER High-Performance Fibers

1. Product-Specific Documentation

Request current technical data sheets, available test reports and applicable conformity documents for the selected product.

2. Application-Based Selection

Select fibers according to the cementitious system, processing conditions and required mechanical, thermal or crack-control performance.

3. Specialty Fiber Options

Explore PVA, PAN, basalt, carbon, anti-spalling polypropylene and cellulose fibers for different application requirements.

4. Technical Support

Get support with product selection, dosage evaluation and mixing procedures. Confirm suitability through mixture trials and project-specific performance testing.

PIONEER® factory aerial view.

26,500m² production base

Spinning of concrete reinforcing fibers production process.

Advanced fiber dispersibility

Tensile strength of concrete reinforcement fiber production process.

Exceptional tensile strength

FAQ

  • HPM PAN is a polyacrylonitrile monofilament micro synthetic fiber designed for concrete and other cementitious materials. It is used where fine distributed fiber reinforcement and project-specific crack-control requirements are being evaluated.

  • PAN fibers can be distributed through the cementitious matrix to provide micro-scale crack bridging. Their suitability depends on fiber dimensions, dosage, concrete or mortar mix and the performance required by the project.

  • Final dosage should follow the current HPM PAN Technical Data Sheet and should be selected according to fiber length, application, concrete or mortar mix and required performance.

  • PAN and polypropylene are different polymer fiber materials with different physical properties and product formulations. Select between them using product-specific dimensions, dosage, technical data and project performance requirements rather than assuming one material is universally better.

  • HPM PAN is a micro synthetic fiber and should not be treated as a universal replacement for structural steel reinforcement. Any reduction or substitution of conventional reinforcement should be supported by project design, testing and applicable approval.
